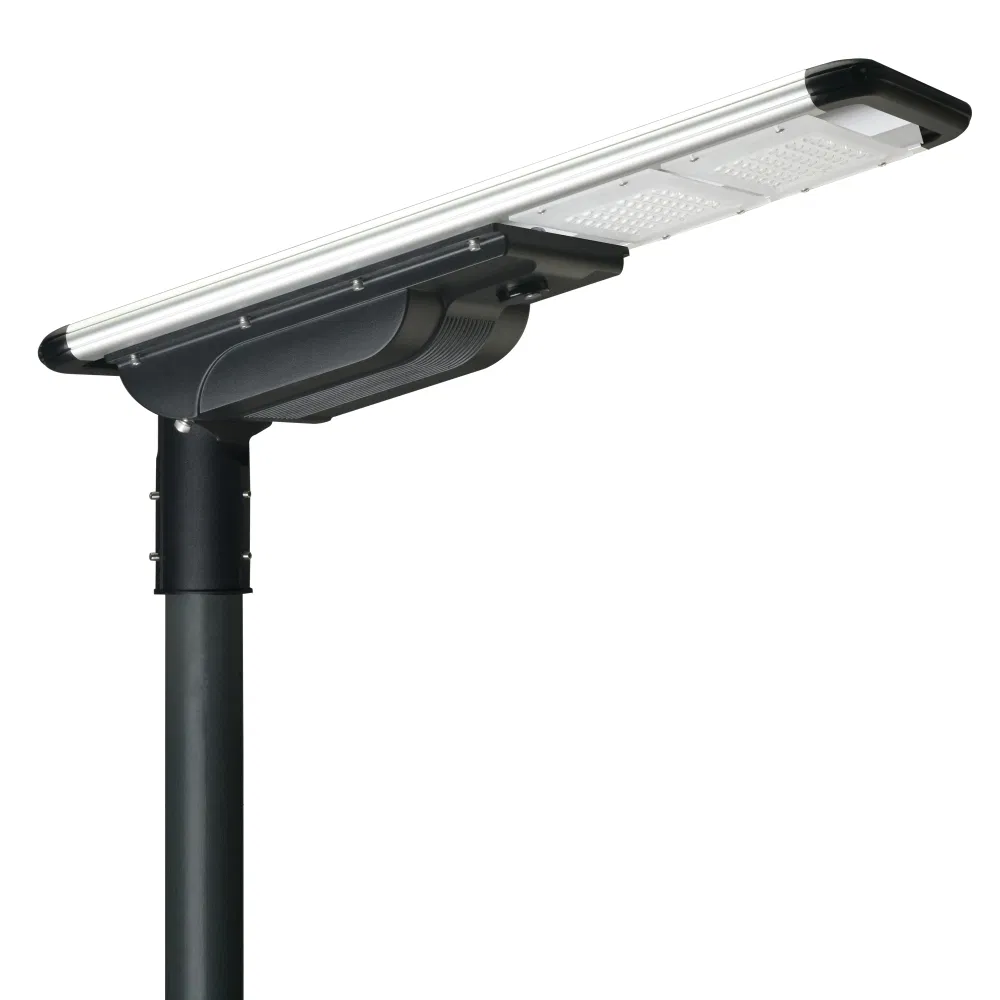

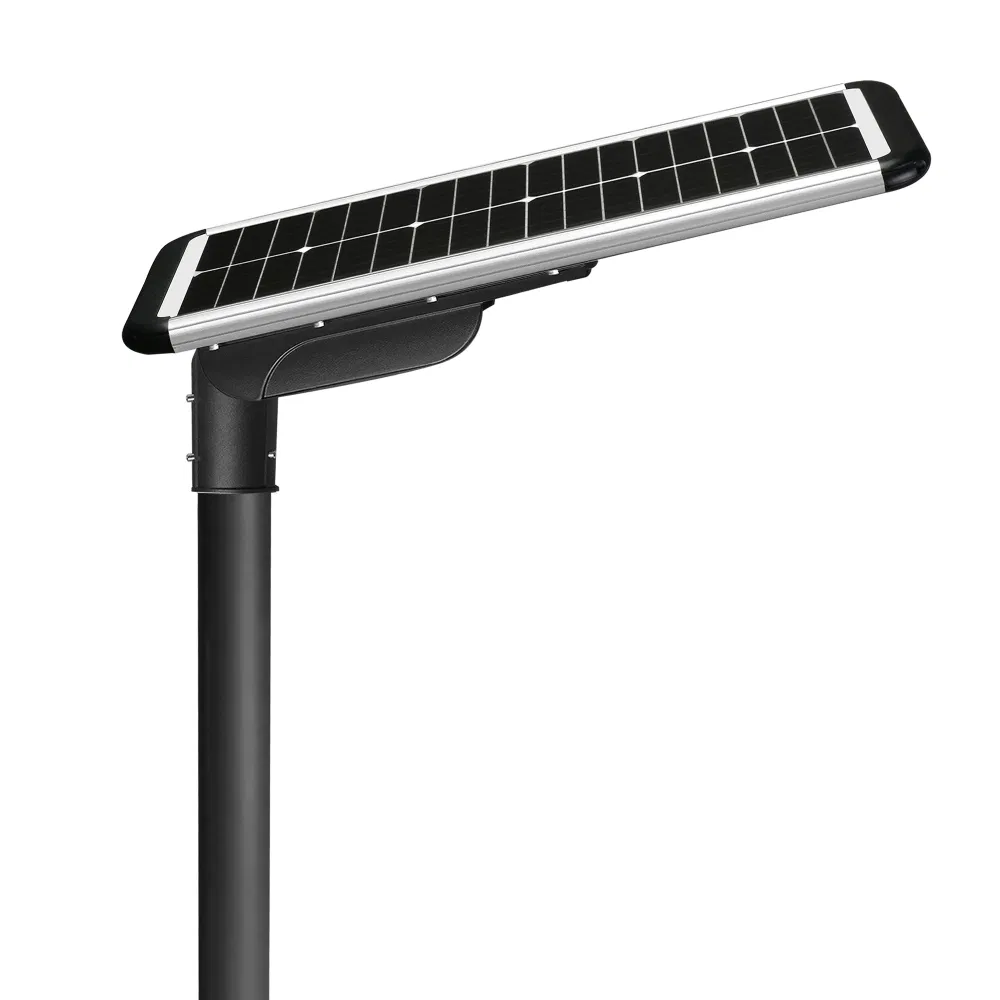

Highly Cost Effective Super Bright All-in-One Integrated Solar Street Light

1 / 5

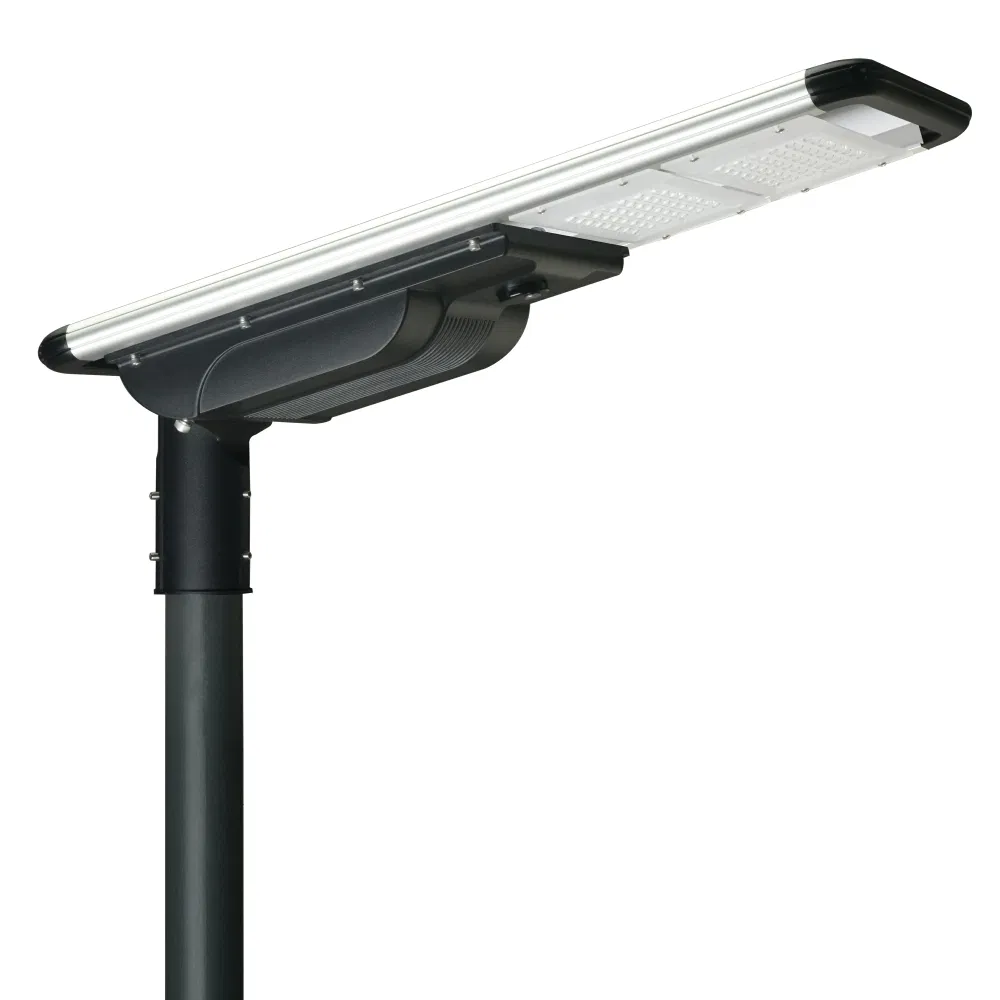

Highly Cost Effective Super Bright All-in-One Integrated Solar Street Light

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

BR-FX-40W

Light Source

LED Lamp

Lamp Body Material

Die-Casting Aluminum Alloy

Light Type

Solar

Color Temperature

2000K-7500K

Power

≥30W

Illumination Time

4-9hours

Cell Type

LiFePO4 Lithium Battery

Charging Time

5-6hours

IP Rating

IP66

Voltage

12/24V

Solar Panel

Monocrystalline Silicon

Sensor

Microwave Motion Sensor

LED Chip

USA Chips SMD3030/5050

★

Product Description

Highly Cost Effective Super Bright All-in-One Integrated Solar Street Light. This 40W integrated solution provides powerful illumination without the need for traditional street light poles, optimizing energy efficiency and installation ease.

✔

Key Features

High Class Material: Integrated die-casting aluminum alloy case for durability.

Radar Sensor: Intelligent radar sensor mode with long-distance detection.

Wide Angle: 140° view angle to light up larger areas.

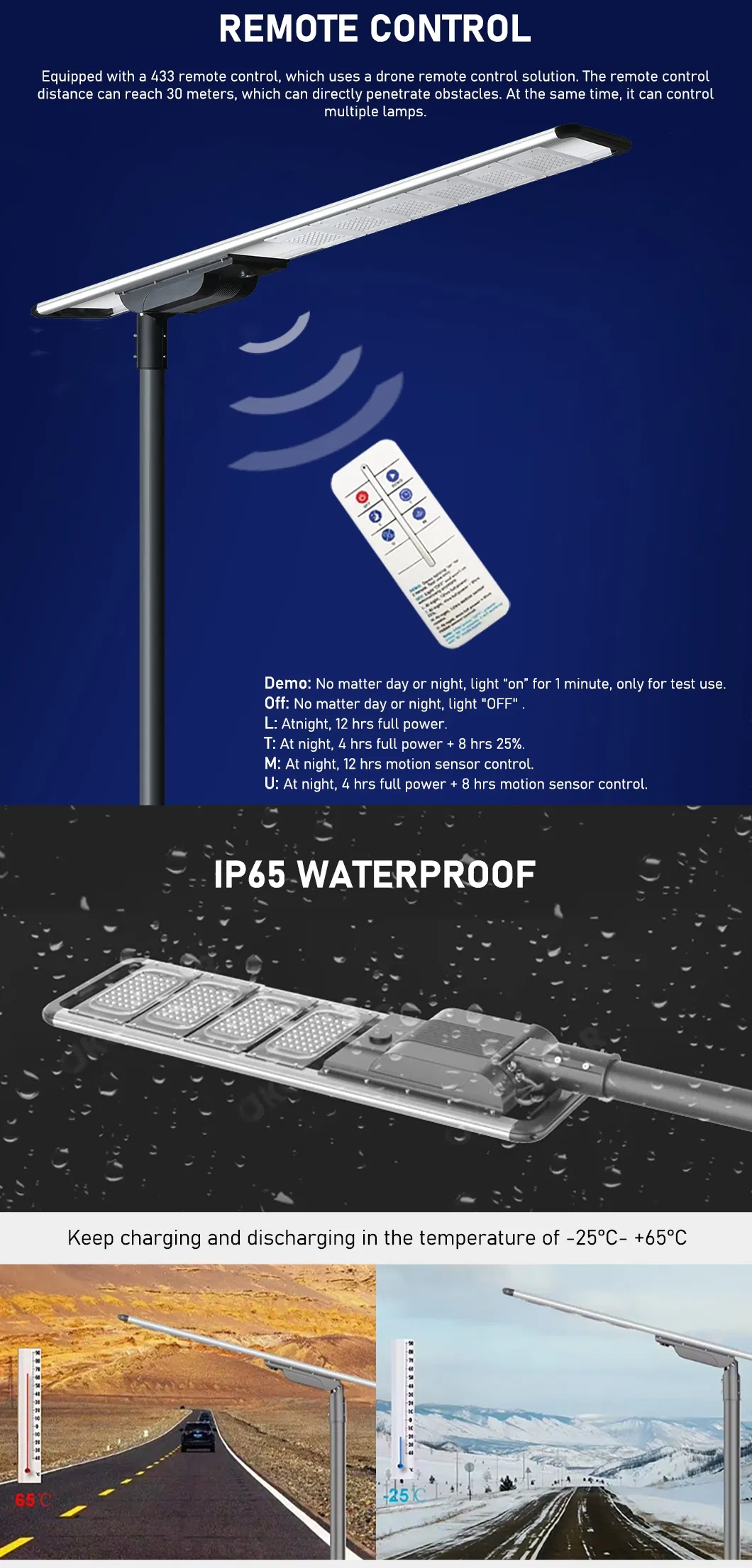

Smart Control: Remote control with 4 lighting modes and UVA technology for corrosion resistance.

Easy Maintenance: Auto on/off functionality and simple installation process.

⚙

Technical Parameters

Component	Specification
LED Lamp	40W Bridgelux Chips 3030 (Lifespan: 100,000 hours)
Lumen	170LM/W
Battery	LiFePO4 15AH 12.8V
Solar Panel	18V 60W High Efficiency Monocrystalline
Mounting Height	6~7m (Suggested space between lights: 20-25m)
Cloudy/Rainy Performance	Up to 12 Cloudy/Rainy Days support
Waterproof Rating	IP66
Working Temp	-25ºC to 65ºC

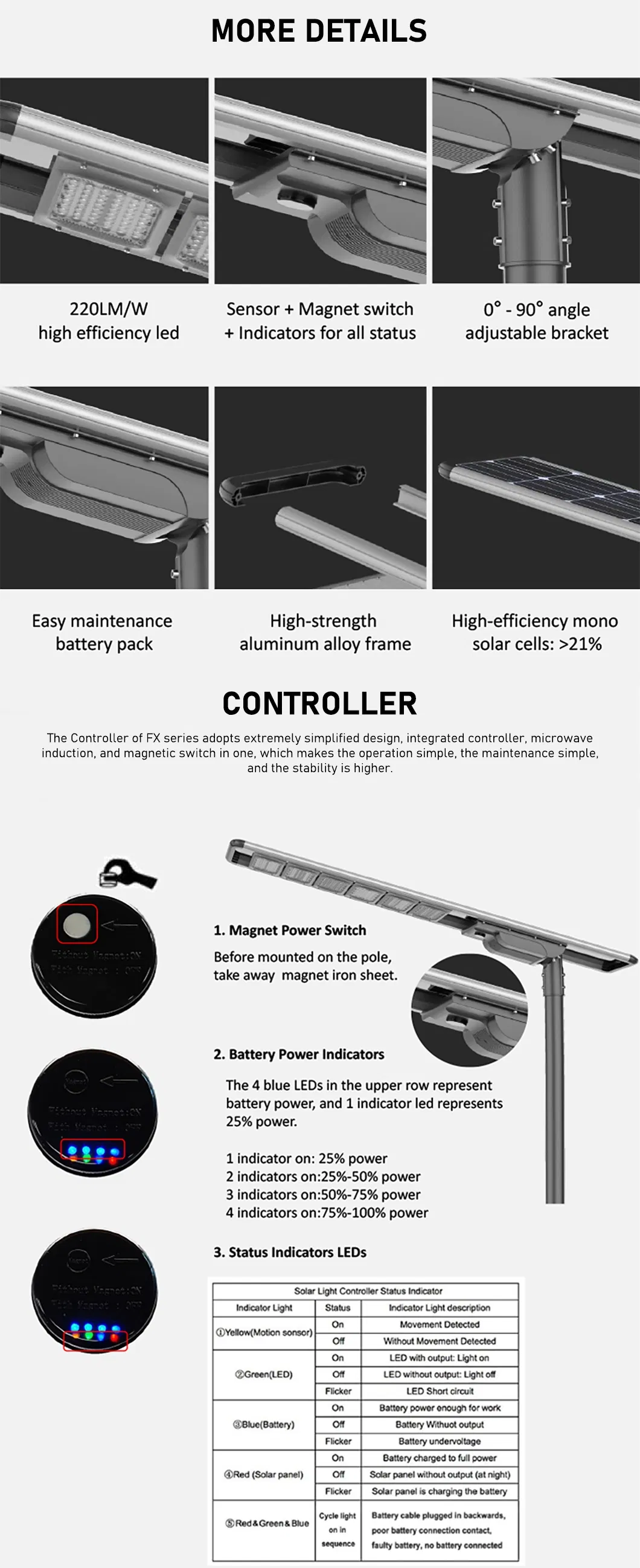

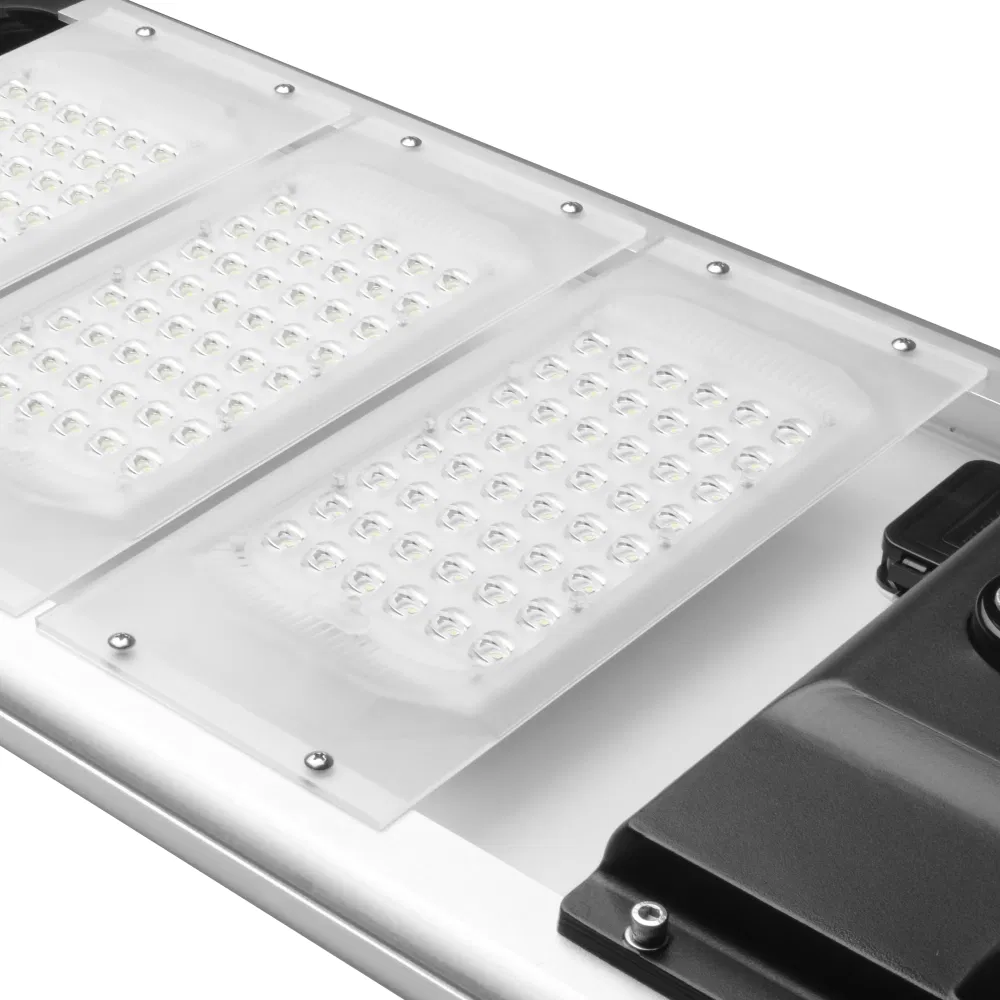

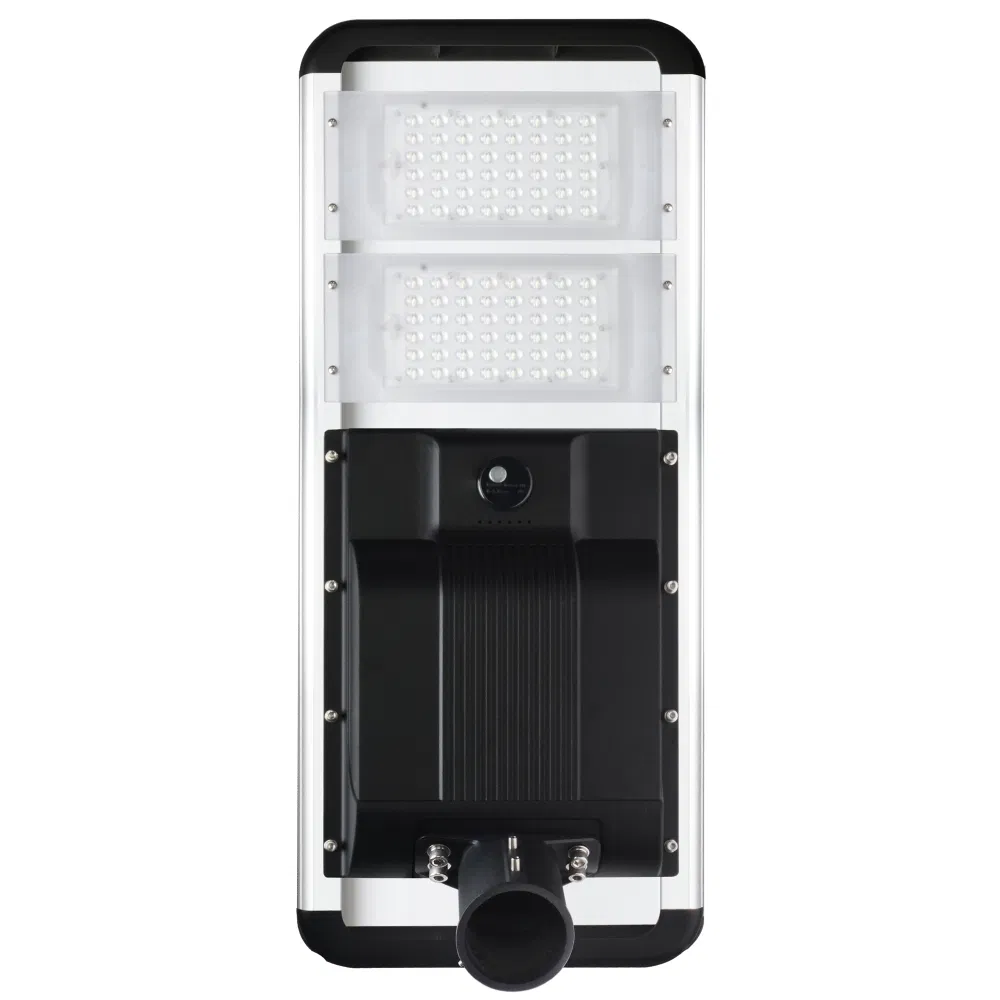

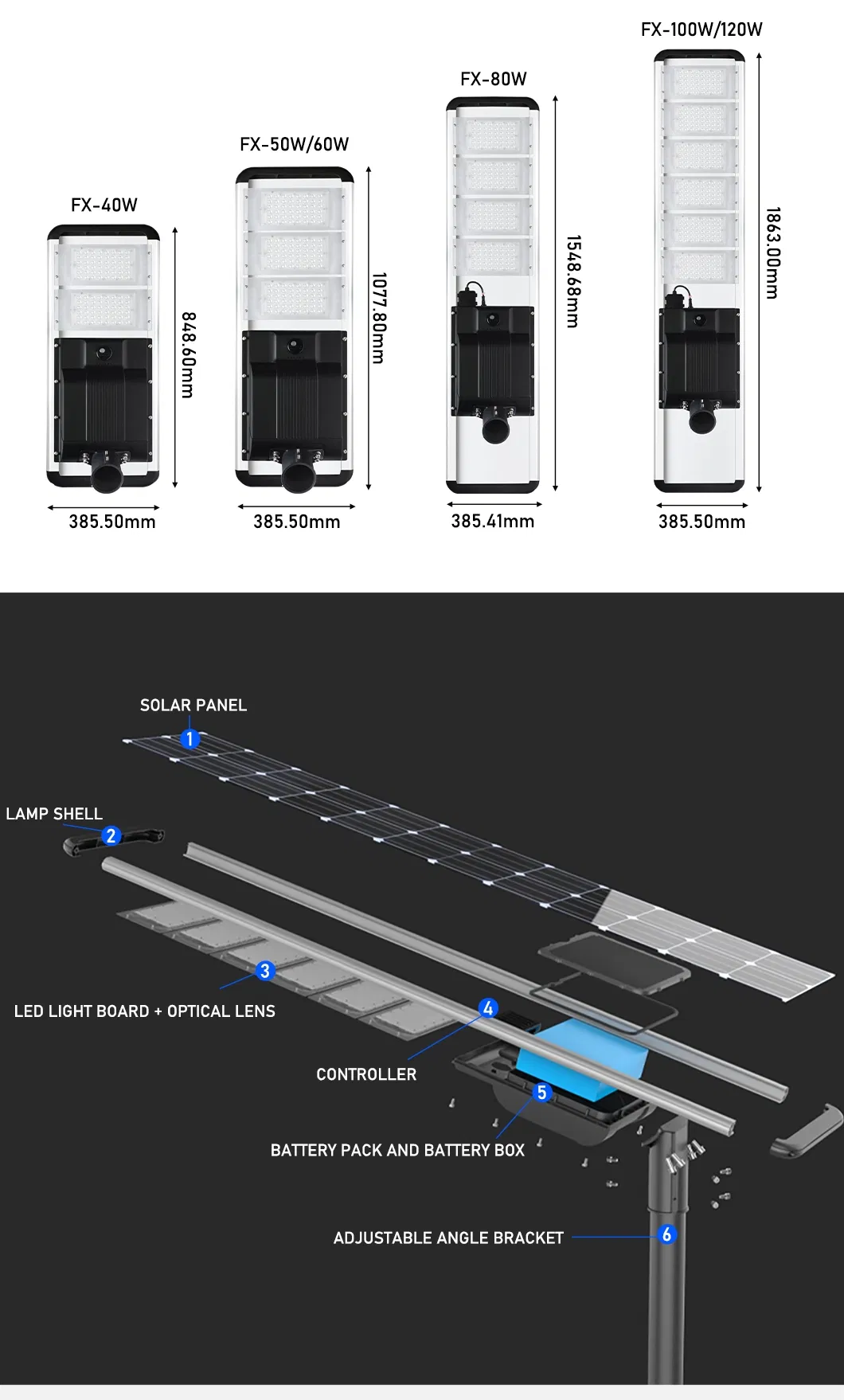

Detailed Photos

Logistics & Packaging

Package Size

920*160*450mm

Gross Weight

12.2KG

20GP Container

420 Sets

40HQ Container

1030 Sets

Frequently Asked Questions

How long does the battery last on a full charge?

The system provides 4-9 hours of illumination per night and can support up to 12 consecutive cloudy or rainy days depending on the selected lighting mode.

What is the benefit of the Microwave Motion Sensor?

The microwave sensor is more sensitive than traditional PIR sensors, allowing for longer distance detection. It adjusts brightness automatically when movement is detected to save energy.

Is this solar light resistant to harsh weather?

Yes, the unit is rated IP66 waterproof and is built with a die-casting aluminum alloy housing, allowing it to operate in temperatures ranging from -25ºC to 65ºC.

What is the lifespan of the LED and battery?

The LED chips have a lifespan of approximately 100,000 hours, and we use high-quality LiFePO4 lithium batteries which offer superior cycle life compared to standard lithium batteries.

Is it difficult to install the integrated solar street light?

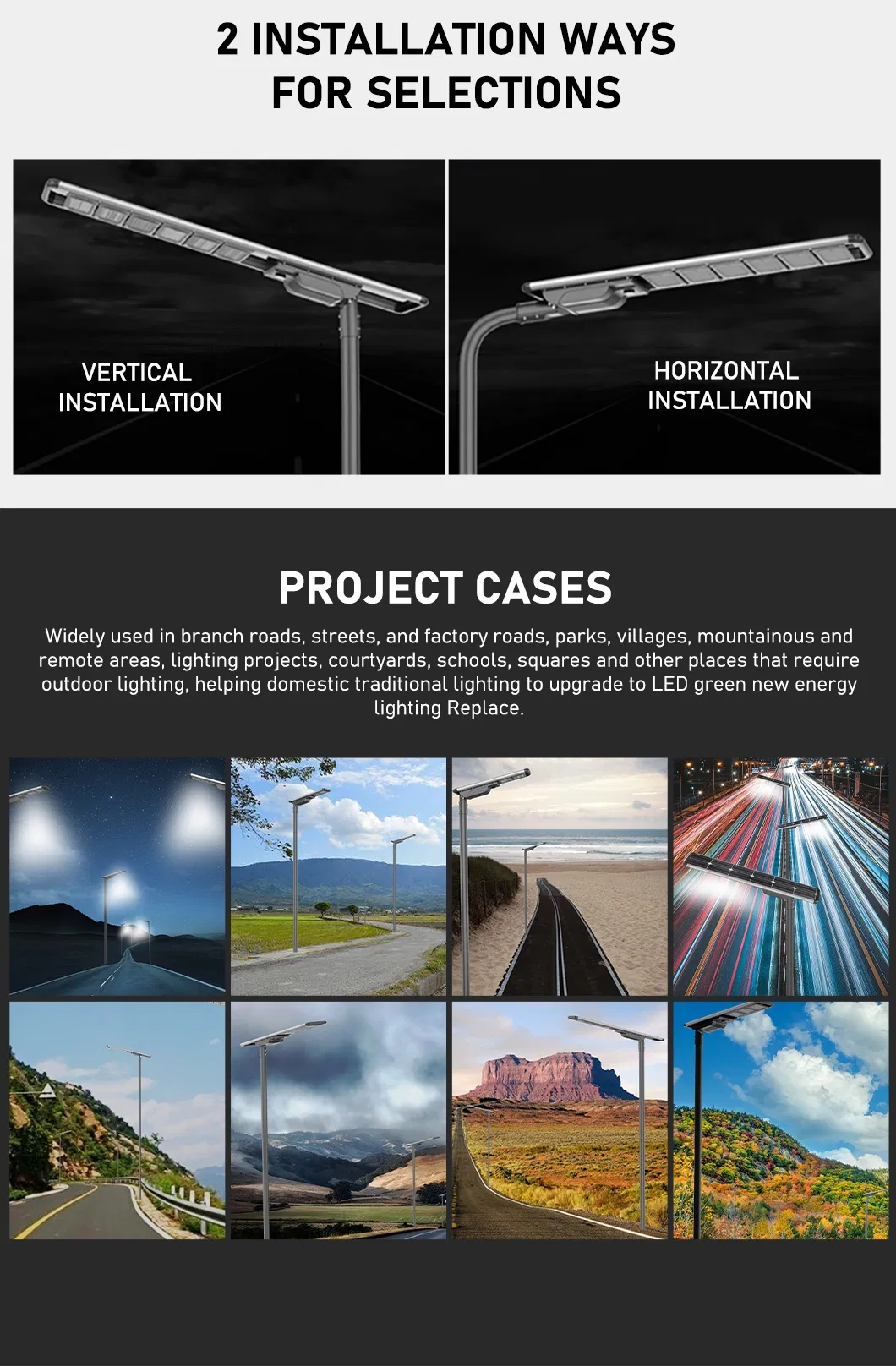

Not at all. The "All-in-One" design means the solar panel, battery, and light source are integrated. You simply need to mount it on a pole or wall using the provided brackets.

Does the product come with a warranty?

We offer a standard 3-year warranty for this model. All components can be replaced during this period in case of quality issues under normal use.
